Fanvil Dual Band Video Intercom Kit | VIK-01

SKU	FAN-VIK1
Manufacturer	Fanvil
Manufacturer Product Code	VIK-01
Download	Datasheet Download  Type Approval
Specifications	i504W Ethernet Ports: 1x 10/100 Interface: 8x Alarm Input, 1x Short Circuit Output, 1x Doorbell Input, 1x RD485 (Reserved) Mounting: Wall Mount Operating Temperature: -10°C to 50°C PoE Input: 802.3af/at Power Input: 12V 1A Screen: 7-inch color capacitive touch screen 1024×600 Speaker: 2W WiFi: Dual BandDimensions: 177.38 x 113.99 x 22.5mmi60 Camera: 2 MP, Supports infrared IP Rating: IP65 Mounting: Wall Mount (Rain Cover) Power Input: 12V 1A or PoE 802.3af Sensor: 1/2.9-inch，CMOS Viewing Angle: 140°(FOV) 100°(Horizontal) 57°(Vertical) Dimensions: 50 x 130 x 30 mm

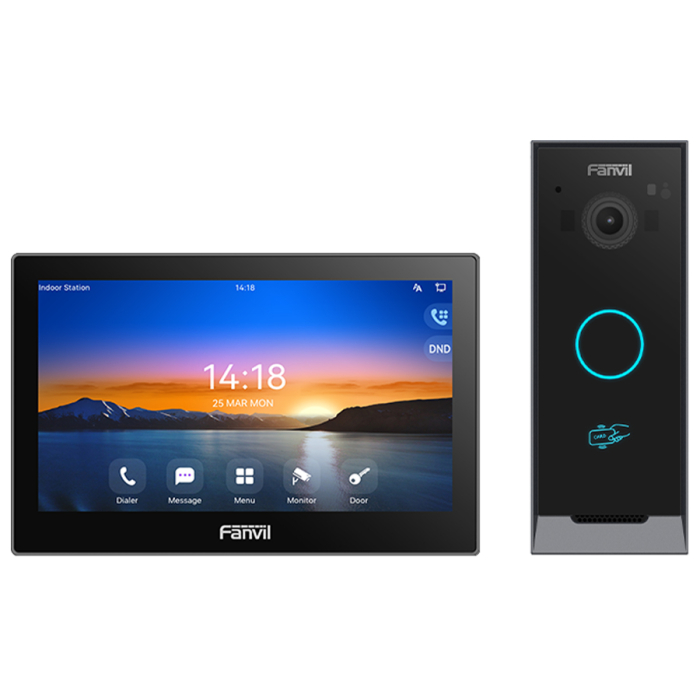

Fanvil's FAN-VIK1 Video Intercom Kit integrates the i504W SIP Indoor Station, i60 Video Door Phone, and Fanvil Link App for the ideal video intercom solution. It has a built in relay to directly support door or gate unlocking with control via the indoor panel or through Fanvil's app. It supports 2.4G/5G Wi-Fi or cabled installation for flexible deployment..
