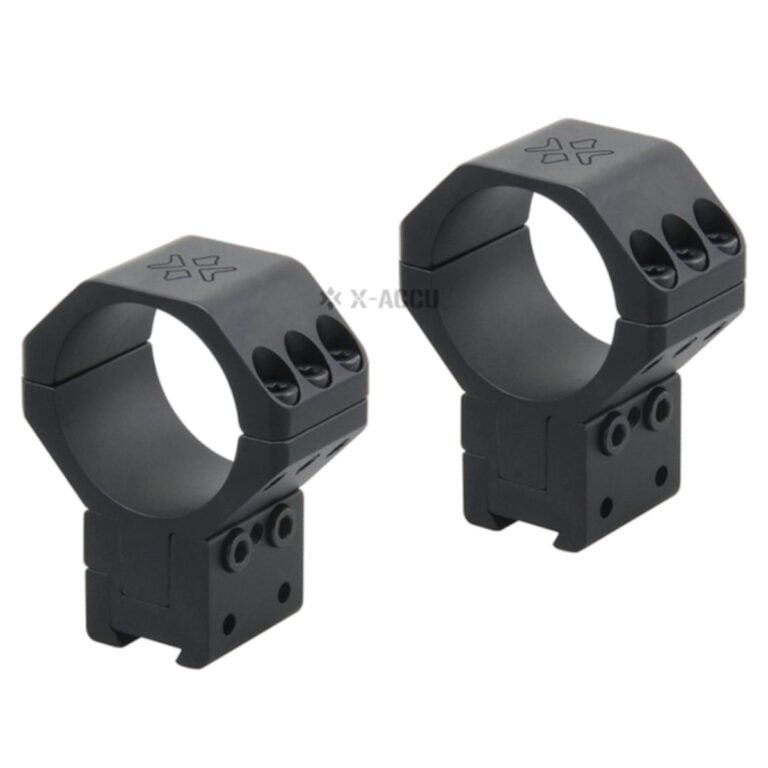

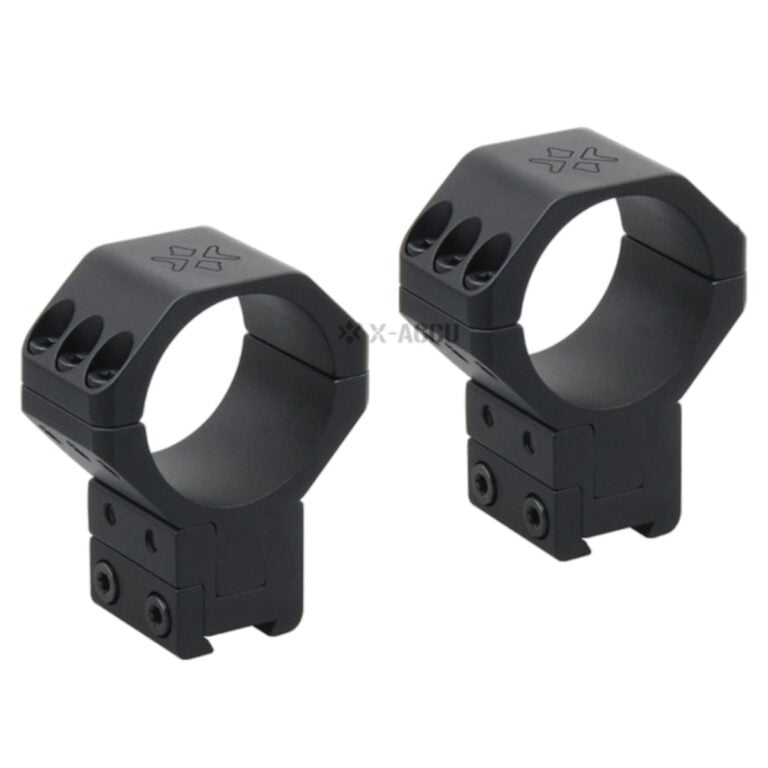

34MM ADJUSTABLE DOVETAIL RINGS – XASR-3055

The 34mm Adjustable-Elevation Scope Rings (Dovetail Mount) are designed for shooters who require flexibility, strength, and uncompromising accuracy. Engineered for scopes with 60mm objective lenses, these rings offer elevation adjustability from 37.5mm to 43mm (1.5″–1.7″) from the base to the ring center, allowing for fine-tuned scope positioning and improved sight alignment.

Crafted from durable 6061-T6 aluminum alloy and precisely CNC machined, these rings offer exceptional structural integrity with a steel cross-bolt reinforcement that handles recoil from high-powered rifles. The innovative tilting design enables minor angular adjustments, making it suitable for dialing in long-range setups or compensating for mounting variances. With six Torx screws per ring and a secure 11mm dovetail base, these rings ensure a tight, stable grip on your optic for consistent performance in any environment.

Features:

• 34mm Ring Diameter: Fits most modern tactical and long-range scopes
• Adjustable Elevation Height: Ranges from 37.5mm to 43mm (1.5″–1.7″) for optimized positioning
• Tilting Capability: Allows minor angle adjustments for precision shooting setups
• Fits 60mm Objective Lens Scopes: Provides ample clearance and alignment
• CNC Machined from 6061-T6 Aluminum: Lightweight and rugged for high durability
• Black Matte Finish: Reduces glare, ideal for tactical or hunting setups
• Six Torx Screws per Ring: Maximum grip and security under recoil
• Steel Cross-Bolt Design: Enhances structural strength and holds zero under heavy use
• 11mm Dovetail Mount: Fits a wide range of air rifles and rimfire firearms
• Included Tool: Comes with T15 Torx wrench for easy installation
• Torque Guidelines:

  • Ring screws: ≤18 in/lbs

  • Base nut: Recommended 25 in/lbs (Max 45 in/lbs)

Specifications:

• Ring Diameter: 34mm
• Elevation Height: 37.5–43mm (1.5″–1.7″) from base to ring center
• Ring Width: 26mm / 1.0″
• Weight (Net): 155g / 5.5oz
• Material: 6061-T6 aluminum alloy
• Finish: Black matte
• Mount Type: 11mm dovetail
• Construction: CNC machined with steel cross-bolt
• Screws per Ring: 6 (Torx)
• Included Accessories: T15 Torx wrench
• Torque Limits:

• • Screws: ≤18 in/lbs

  • Base nut: Suggested 25 in/lbs (max 45 in/lbs)
